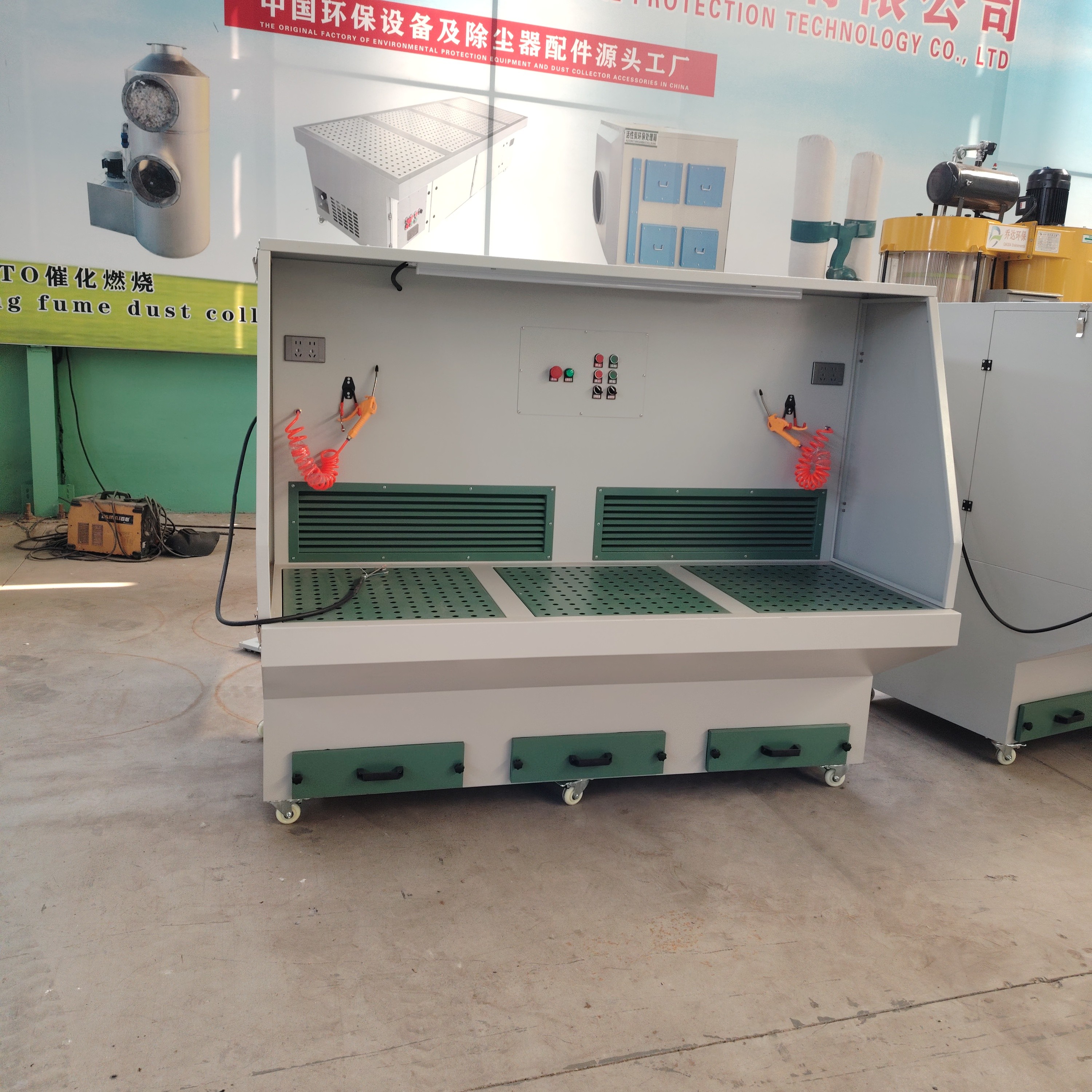

Downdraft Table Dust Collector For Grinding/polishing With CE
Grinding table is a kind of industrial dust removal equipment which
integrates table and dust collector. Grinding table is suitable for
small and medium-sized fine processing, irregular parts processing
conditions. Without interfering with the daily work of workers, the
grinding table can effectively capture the suspended fine dust,
providing workers with a clean and healthy working environment.
1. Introduction
A grinding bench (or grinding table) is a sturdy work surface
designed for precision grinding, polishing, and finishing tasks in
metalworking, woodworking, and other industrial applications. Its
primary uses include:
(1) Material Shaping & Smoothing – Used to grind down rough edges,
remove burrs, and refine surfaces on metal, wood, or composite
materials.
(2) Tool Maintenance – Sharpens blades, drill bits, and other tools
by providing a stable platform for grinding wheels or abrasive
belts.
(3) Deburring & Finishing – Helps achieve smooth, even surfaces on
workpieces before assembly or coating.
(4) Safety & Stability – Equipped with clamps or vices to secure
materials, reducing slippage and improving precision.
(5) Versatility – Compatible with bench grinders, sanding discs, or
hand files, making it essential in workshops, foundries, and
fabrication labs.
Ideal for both professional and DIY projects, a grinding bench
ensures efficient, controlled material processing while enhancing
workplace safety.
2. Parameter Description
Take QD-DM2000 model for example:
| Air Volume | 3000m3/h | Power | 3kw |

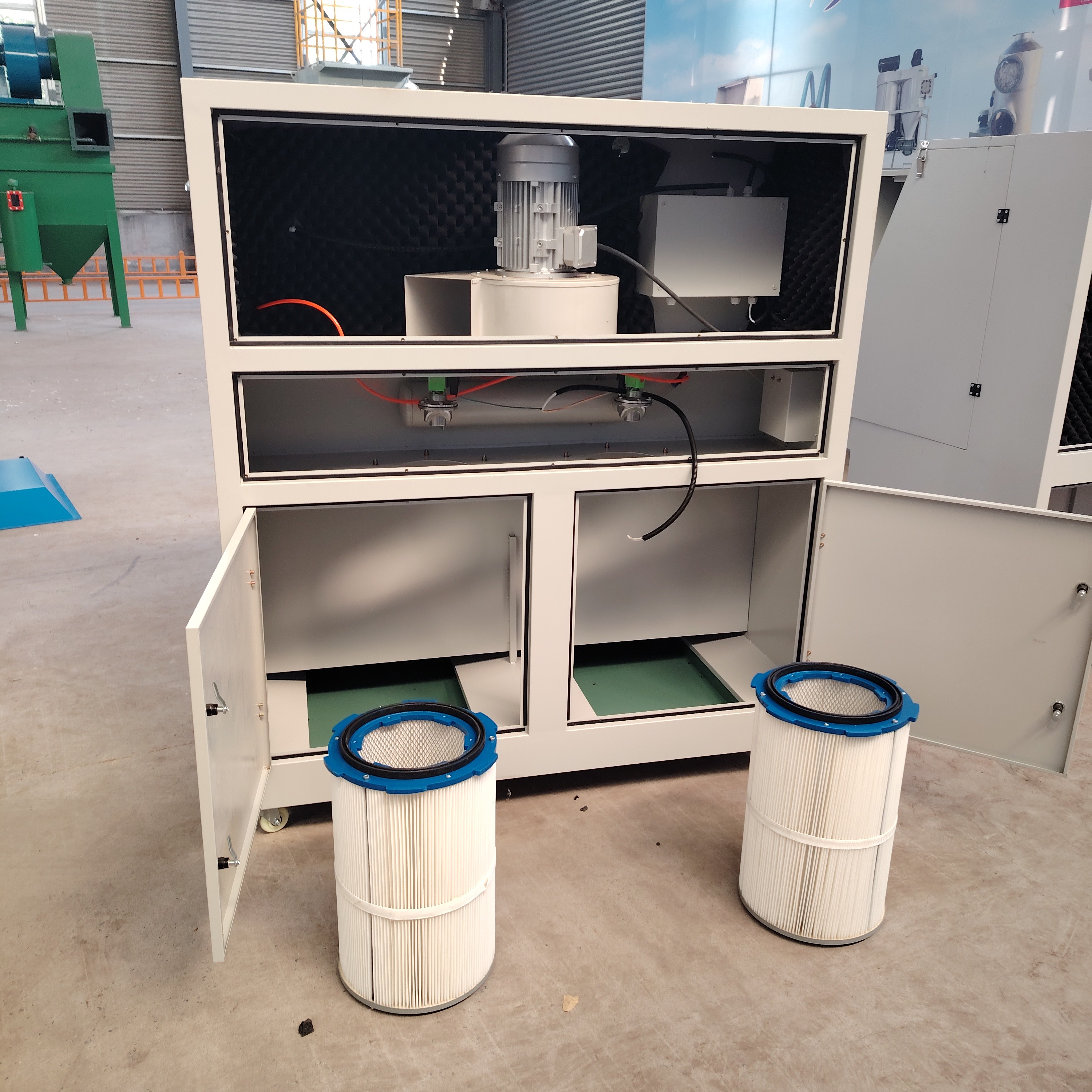

| Power | 380V, 50HZ(optional) | Filter Cartridge | Φ325*500mm, 3 pcs |
| External Size | 2000*1000*800mm | Cleaning Method | Pulse Valve |
| Pulse Valve | 1.0 inch, 3 pc | Noise | <85 dB |
| Purification Efficiency | 99.97% |
|
|
3. Installation Instructions
(1) It should be used on a firm and flat ground to avoid noise
caused by the machine shaking.
(2)When using the machine, please pay attention to whether the
voltage of the power supply is compatible with the machine, and do
not share a socket with other electrical appliances.
(3) Do not tilt the machine more than 45 degrees when moving or
carrying it.
(4)When using the machine, please pay attention to keep a space of
not less than 50cm-100cm around the machine.
(5)The operation of the equipment is simple, in the control system
of the equipment within the faceplate has been adopted intelligent
design, turn on the power switch can start to work, after the
operation is completed turn off the power switch.
(6)Wiring three fire one zero.
4. Application
(1) Metal processing: aluminum alloy, stainless steel parts
deburring, welding seam polishing.
(2) Woodworking industry: furniture, musical instrument surface
polishing.
(3) Composite materials: fiberglass, carbon fiber cutting and
trimming.
(4) 3D printing post-processing: PLA, ABS model grinding and dust
removal.
