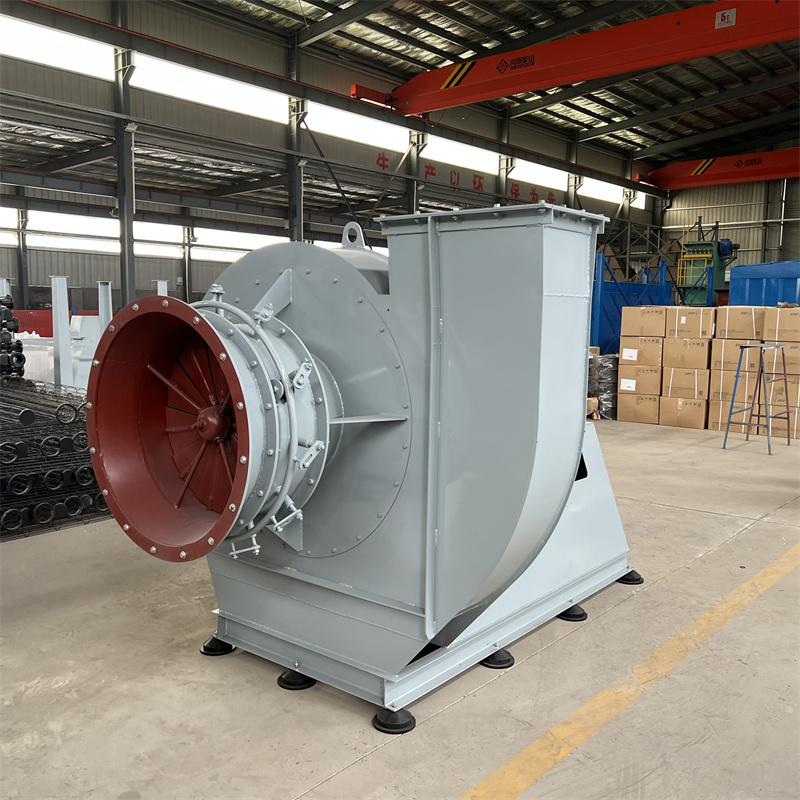

    High Pressure Induced Draft Fan 380V / Centrifugal Industrial Ventilator G4-68-14D

    Ask Lasest Price
    Brand Name : QiaoDa
    Model Number : 9-19
    Certification : YES
    Price : $2,999
    Payment Terms : L/C, T/T,, L/C
    Supply Ability : 100 units per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    High Pressure Induced Draft Fan 380V / Centrifugal Industrial Ventilator G4-68-14D

    Industrial ventilator G4-68-14D High pressure induced draft fan/centrifugal

    The dust collector fan is an important part of the dust removal equipment, which is mainly
    responsible for providing the required air circulation for the dust collector, so as to ensure
    that the dust collector can effectively remove dust, particles, microorganisms and harmful
    gases from the air. The following is a detailed analysis of the dust collector fan:
    The working principle of the dust collector fan is mainly based on the principles of fluid
    mechanics and aerodynamics. When the fan is started, the impeller inside it begins to
    rotate at high speed, producing a strong suction force. This suction makes the dust-containing
    gas be sucked into the dust collector, after a series of filtration and purification treatment,
    clean air is discharged, and dust and pollutants are collected in the dust collector. Specifically,
    the fan converts the mechanical energy into the kinetic energy of the air stream through the
    rotation of the impeller, creating a powerful airflow cycle that pushes the air flow and separates
    the dust particles.

    9- 19 High pressure centrifugal fan 9-19 High Pressure Centrifugal Fan

    9-19 series fans are generally used in forging furnaces, glass, electroplating, ceramics, batteries, radio and other industries of high-pressure forced ventilation, and can be widely used in grain. Feed, mineral powder and other processing industry material transportation
    Here. Also suitable for carton machinery equipment, tempered glass equipment and other supporting use. The conveying medium is air and other non-spontaneous, harmless and non-corrosive gases, and no viscous substances are allowed in the gas.
    Generally, the use temperature of ventilation shall not exceed 80 ° C, and the dust and hard particles contained shall not be greater than or equal to 150mg/m³.

    Type styleSize(NO)Power(KW)Speed(r/min)Volume Flow(m/h)Total Pressure(pa)

    9-19 High pressure centrifugal fan

    3.5A1.52800552-8472745-2744
    4A2.22800824-12643584-3597
    329001410-17043507-3253
    4.5A429001174-20624603-4447
    5.529002281-25044297-4112
    5A7.529001610-28445697-5517
    1129303166-34885323-5080
    5.6A1129302262-36197182-7109
    18.529303996-49016954-6400
    6.3A18.529303220-51539149-9055
    3029505690-69788857-8148
    7.1D3729504610-737611717-11596
    5529708144-998811340-10426
    8D7529706594-1164915034-14546
    110298012968-1428714021-13362
    7.514503297-46163620-3647
    1514505275-71443584-3231
    9D1514504695-75114597-4551
    2214508294-101714453-4101
    10D3014706440-124505840-5495
    37148013952-154555244-4958
    11.2D4514809047-153807364-7236
    75148017491-217136927-6246
    159705990-115803182-2996
    2297012978-143752860-2705
    12.5D75148012577-184479229-9310
    110148021381-301869068-7822
    14D220149030040-4240911464-9878
    7599019888-280784917-4249
    16D400149057150-6330513808-13035
    11099029687-419126456-5575
    17D500149061200-7590016356-14715
    16099040500-503007169-6450
    18D630149072600-9010018336-16497
    20099048100-597008037-7231

    3. Q&A
    Q: Are you a trading company or a manufacturer?
    A: We are a manufacturing company. We are a professional manufacturer of dust removal
    and conveying equipment with more than 20 years of production.
    Q: Where is your factory located?
    A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
    Q: Do you offer OEM services?
    A: Yes. Any required logo is available.
    Q: What is the production capacity of your company?
    A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines
    a year.
    Q: What certificates do you have?
    A: ISO / SGS
