U-screw conveyor is mainly used for horizontal conveying and
vertical lifting of various loose
materials such as powder, granular and small block. From the Angle
of conveying material
displacement direction, screw conveyor is divided into horizontal
screw conveyor and vertical
screw conveyor two types. Screw conveyors are used to transport
powder or solid particles
with high temperature and other chemical and building materials
products. Screw conveyor
is all made of steel, screw conveyor inside is a conveyor pipe, the
blade into a spiral welded
on the conveyor pipe.

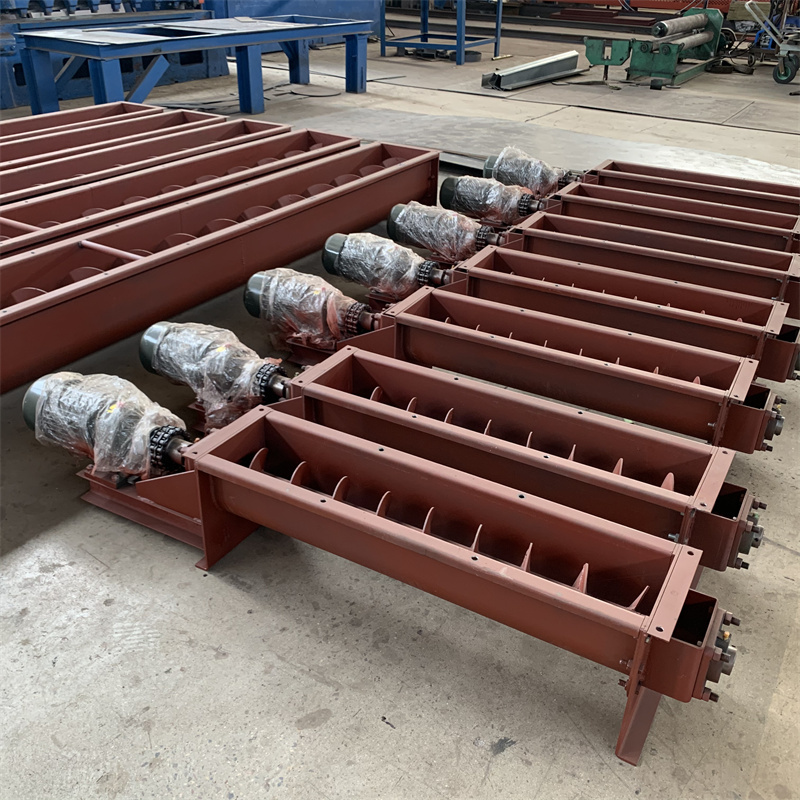

When U-type screw conveyor works, the motor drives the rotating
spiral blade to transport
the material. The spiral blade welded on the rotating shaft of the
screw conveyor has a solid
surface type, belt surface type, blade surface type and other types
according to the different
conveying materials. The force that makes the material not rotate
with the screw conveyor
blade is the material's own weight and the friction resistance of
the screw conveyor housing
to the material.
Screw conveyor is suitable for horizontal or inclined conveying
powder, granular and small
block materials, such as coal, ash, slag, cement, grain, etc., the
material temperature is
less than 200℃. Such as building materials, chemical, electric
power, metallurgy, coal coal
, grain and other industries. It is not suitable for conveying
materials that are easy to
deteriorate, sticky and easy to caking.
| 规格型号 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 |
Spiral diameter
(mm) | 100 | 200 | 250 | 200 | 400 | 500 | 630 | 800 |
Screw pitch
(mm) | 100 | 200 | 250 | 315 | 355 | 400 | 450 | 500 |
Rotational speed
(R/min) | 2.2 | 90 | 90 | 75 | 75 | 60 | 60 | 45 |
Delivery capacity
(m³/h) | 1.9 | 11 | 22 | 36 | 75 | 93.1 | 160 | 223 |
power
PD=10CM
(kw) | 1 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 |
3. Q&A
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional
manufacturer of dust removal and conveying equipment with more than
20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from
Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and
produces 2,000 machines a year.
Q: What certificates do you have?
A: SO / SGS
