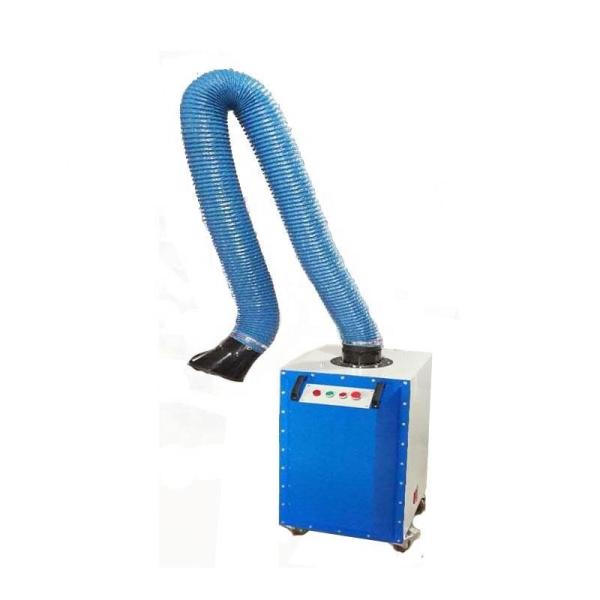

Two Arm Welding Smoke Extraction System Welding Fume Dust
Collection For Metal Welding
1. Application
The welding smoke purifier produced by the company is a
purification device designed for industrial welding smoke and light
particles, it is light and flexible, easy to operate, it is also
widely used in chemical, electronics, metal processing, tobacco,
glass, pharmaceutical, food processing, purification room, hospital
and other industries and other places with dust and smoke
pollution.
2.Equipment characteristics
(1) with a special turbine fan and brand motor, using the
anti-overload circuit to prevent motor burning, high safety, stable
performance.
(2) Manual cleaning: manual cleaning, so that the filter surface
cleaning more thorough, clean, can always ensure that the dust
collector has a constant intake of air;
(3) The filter cylinder is made of domestic well-known brand
materials, long service life, can absorb 0.3μm dust particles, wet
and sticky dust has a good filtering effect.
(4) The use of 360 degrees free movement of the universal suction
arm, can absorb smoke from the smoke generation, greatly improve
the collection rate of smoke, to ensure the health of operators.
(5) The purifier internal for fire hazards and large particles of
slag using three protective measures, so that the purifier service
life is longer, more safe and reliable.
(6) Clean air is evenly guided and dispersed from the direction of
the grille vent, thus reducing noise to a minimum.
(7) With a special brake of the new Korean universal caster, easy
to move and position the equipment.
3. Parameter Description
Take QD-HY2200D model for example:
| Air Volume | 2500m3/h | Power | 2.2kw |
| Power | 380V, 50HZ(optional) | Filter Cartridge | Φ325*500mm, 1 pc |
| Body Dimension | 750*700*1100mm | Cleaning Method | Manual/Pulse |
| Shell Thickness | 1.4mm | The Size of Arm | Φ*L160*3000mm, 1 pc |
| Noise | <85 dB | Purification Efficiency | 99.97% |
4. Installation instructions
● It should be used on a solid and flat ground to avoid noise
caused by machine shaking.
● When using the machine, pay attention to whether the voltage of
the power supply is consistent with the machine, and do not use a
socket with other electrical appliances.
● When moving or handling the machine, the tilt of the machine
should not exceed 45 degrees.
● When using the machine, pay attention to the surrounding space of
not less than 50cm-100cm.
● The operation of the equipment is simple. Align the suction pipe
port above the welding point that needs to be purified, turn on the
power switch to start working, and turn off the power switch after
the operation is completed.
● The connection between the suction hose and the equipment needs
to be properly sealed to avoid the hose being collided and crushed
by external forces, otherwise it may affect the airflow through.
5. FAQ
Q: What certificates do you have?
A:CE / ISO / SGS
Q: Do you provide after-sales service?
A: Yes. Engineer provided.
Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged
parts free of charge as long as they are not artificially damaged.
Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western
Union, MoneyGram
Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and
sea
