Industrial Grinding Dust Collector Downdraft Table For Metal
Polishing
1. Working Principle

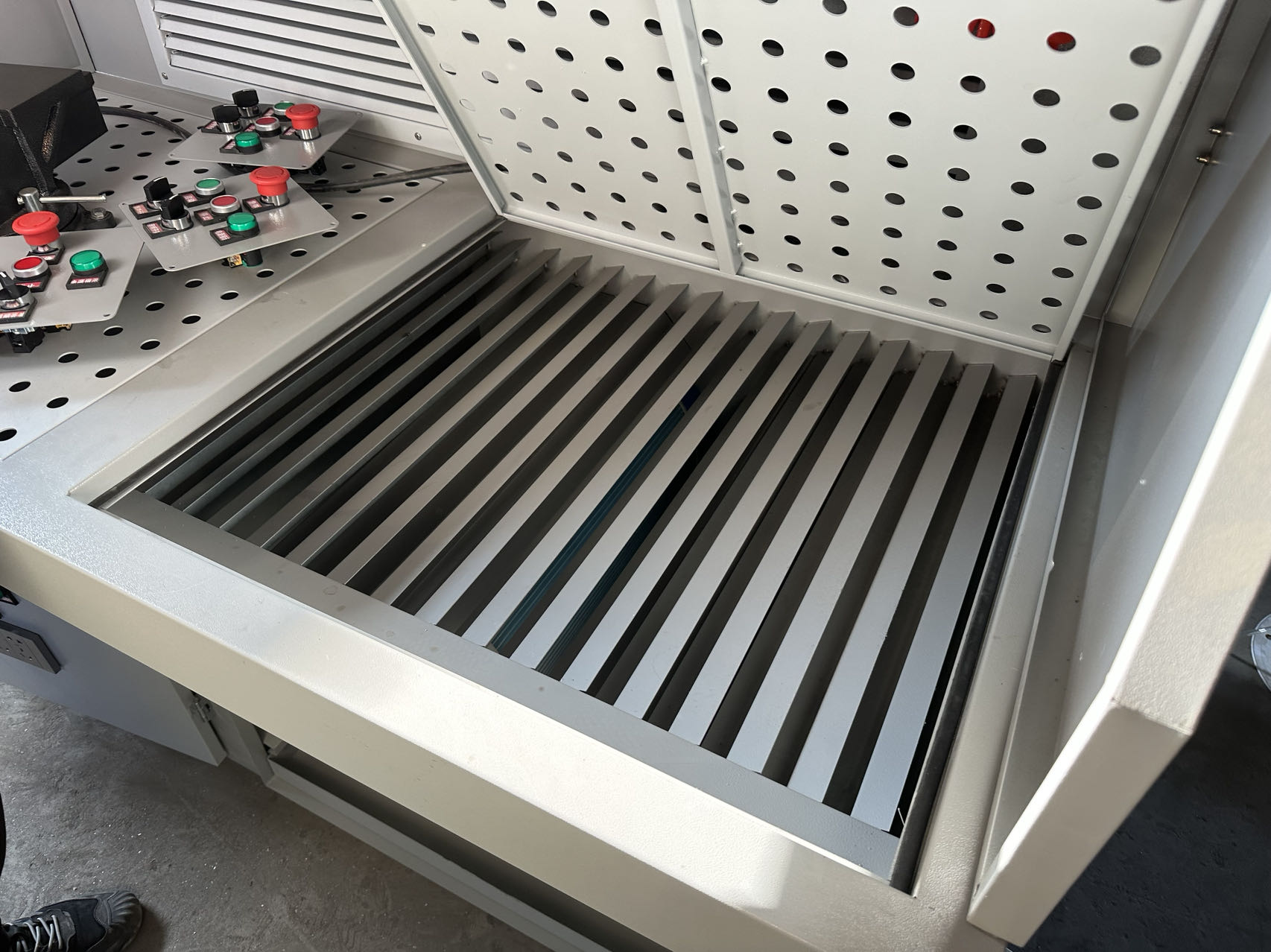

Step 1: Put the metal that needs to be polished onto the work
surface.
Step 2: When polishing metal, the dust enters the deflector channel
through the negative pressure generated by the fan via the suction
openings on the side and below.
Step 3: Large particles of dust collide with the guide plate and
fall into the dust collection drawer under the effect of gravity.
Step 4: The dust with fine particles enters the filtering chamber
and is blocked on the surface by the filter cartridge. When the
dust is continuously deposited on the surface of the filter
element, it will be detached from it and fall into the dust
collection drawer by pulse blowing.
Step 5: The purified air is discharged.
2. Installation Instructions
(1) It should be used on a firm and flat ground to avoid noise
caused by the machine shaking.
(2)When using the machine, please pay attention to whether the
voltage of the power supply is compatible with the machine, and do
not share a socket with other electrical appliances.
(3) Do not tilt the machine more than 45 degrees when moving or
carrying it.
(4)When using the machine, please pay attention to keep a space of
not less than 50cm-100cm around the machine.
(5)The operation of the equipment is simple, in the control system
of the equipment within the faceplate has been adopted intelligent
design, turn on the power switch can start to work, after the
operation is completed turn off the power switch.
(6)Wiring three fire one zero.
3. Parameter Description
Take QD-DM1500H model for example:
| Air Volume | 3000m3/h | Power | 2.2kw |
| Shell Material | 1.5mm cold rolled steel plate | Surface Treatment | electrostatic spraying |
| Power | 380V, 50HZ(optional) | Filter Area | 16m2 |
| External Size | 1500*1200*1600mm | Front Airflow Equalisation Plate | 1 set |
| Main Filter Element | 1 set | Cleaning Method | Automatic |
| Purification Efficiency | 99.97% | Noise | <85 dB |
4. FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional
manufacturer of dust removal and conveying equipment with more than
20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from
Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and
produces 2,000 machines a year.
Q: What certificates do you have?
A:CE / ISO / SGS
