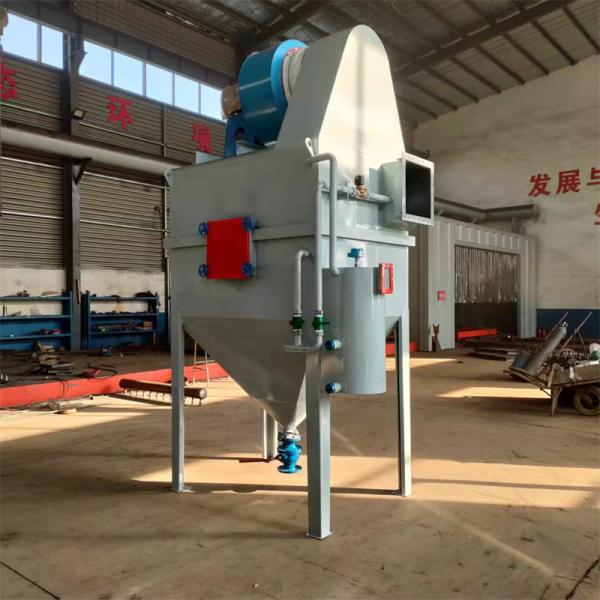

CCJ impulse dust collector is a wet dust removal equipment, which
mainly captures and separates
dust particles in the gas through water bath and impact.
Working principle: After the dust-containing gas enters the dust
collector, it impacts the water surface
through a specially designed structure (such as S-shaped channel),
so that the dust particles fully
contact and adhere to the water droplets, and then realize the dust
capture. At the same time, the
dust collector is also equipped with an automatic water level
control device to keep the water level
stable and ensure the dust removal efficiency.
Application: CCJ impulse dust collector is widely used in
metallurgy, chemical industry, casting and
other industries, especially suitable for the treatment of high
dust concentration, dust has a certain
viscosity of gas.
Advantages: compact structure, small footprint, convenient
construction and installation, easy maintenance
and management. In addition, the dust collector can also
effectively deal with non-corrosive, the temperature
is not more than 300℃ dust containing gas.
Note: Since the CCJ impulse dust collector is a wet dust removal
equipment, it will produce sewage and
sludge during use, and it is necessary to be equipped with the
corresponding sewage treatment system.
In addition, for some special dust (such as flammable and explosive
dust), it is necessary to conduct
adequate evaluation and testing before use to ensure safety.
The above information is for reference only, if you need more
detailed or professional information, it is
recommended to consult experts in the relevant field or consult
relevant literature.
| Specification and model | Air volume (m3/h) | Pressure loss (Pa) | Water consumption(kg/h) | Water capacity (m3) | Power (Kw) | Weight (kg) |
| evaporation | evaporation | Ash discharge |
| CCJ/A2-5 | 4300~6000 | ≤1600 | 17.5 | 150 | 425 | 0.48 | 5.5 | 790 |
| CCJ/A2-7 | 6000~8450 | 24.5 | 210 | 602 | 0.66 | 7.5 | 956 |
| CCJ/A2-10 | 8100~12000 | 35 | 300 | 860 | 1.04 | 15 | 1190 |
| CCJ/A2-14 | 12000~17000 | 49 | 420 | 1200 | 1.2 | 15 | 2426 |
| CCJ/A2-20 | 17000~25000 | 75 | 600 | 1700 | 1.7 | 22 | 3280 |
| CCJ/A2-30 | 25000~36200 | 105 | 900 | 2550 | 2.5 | 30~37 | 3950 |
| CCJ/A2-40 | 35400~48250 | 140 | 1200 | 3400 | 3.4 | 37 | 4900 |
| CCJ/A2-60 | 53800~72500 | 210 | 1800 | 5100 | 5 | 75 | 6760 |
