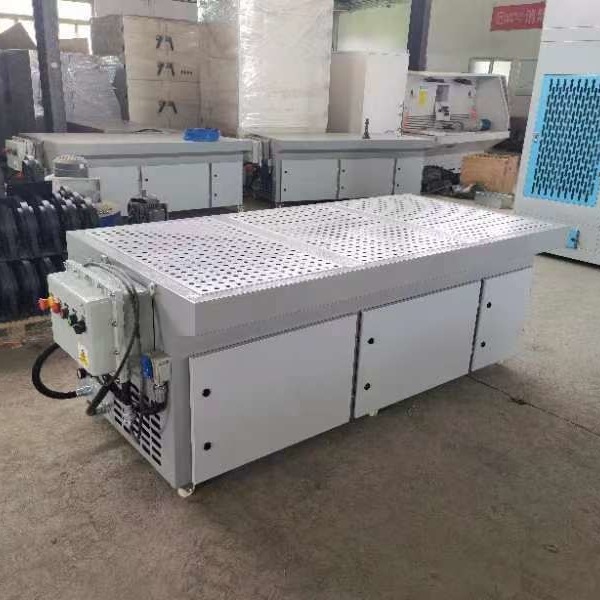

Efficiency Grinding Polishing Sanding Use Downdraft Table Sanding
Dust Collection Table
Grinding table is a kind of industrial dust removal equipment which
integrates table and dust collector. Grinding table is suitable for
small and medium-sized fine processing, irregular parts processing
conditions. Without interfering with the daily work of workers, the
grinding table can effectively capture the suspended fine dust,
providing workers with a clean and healthy working environment.
1. Classification
(1) Dry dust removal grinding table

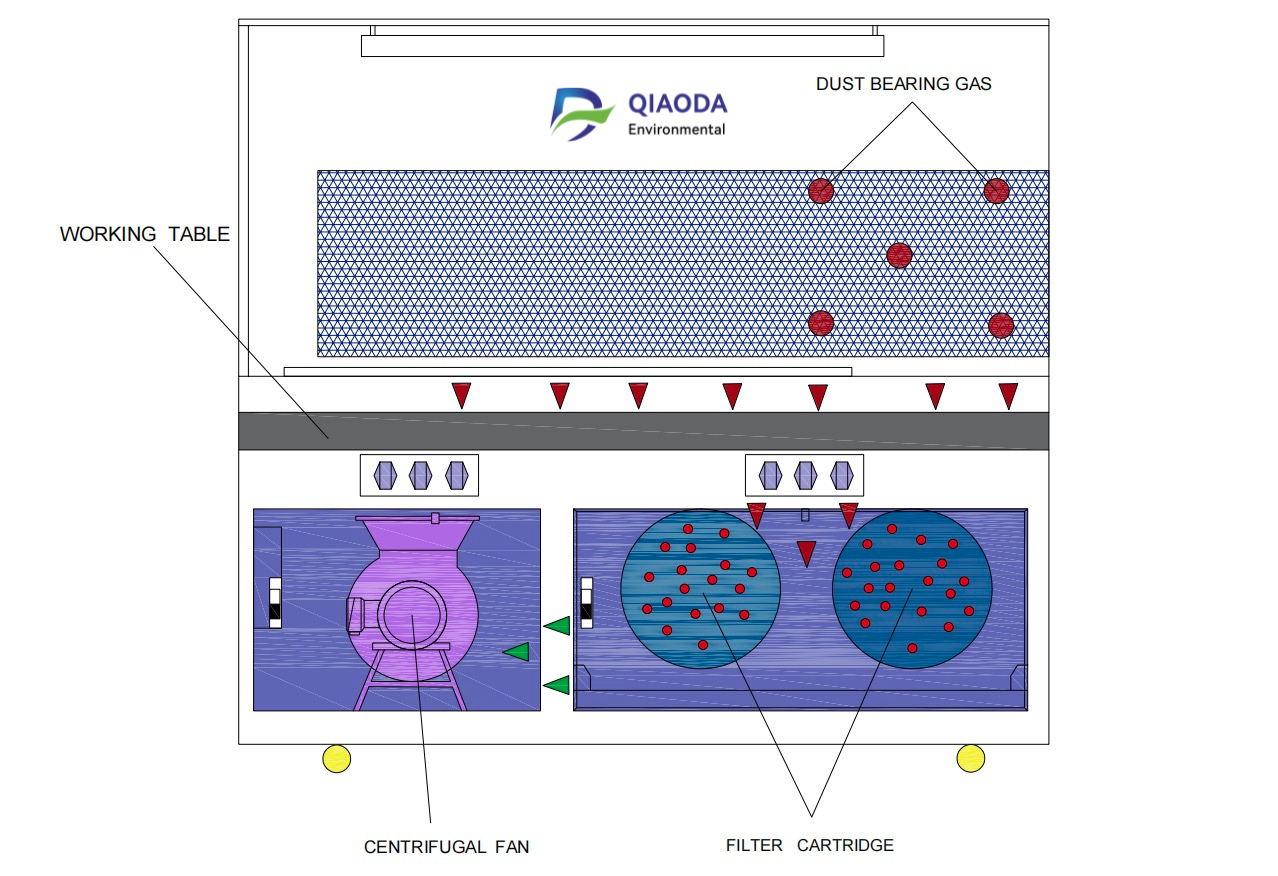

It adopts dry dust removal technology to capture and purify the
dust particles generated during the sanding process through
high-efficiency filtration materials (such as cartridges) to ensure
a clean and safe working environment.
(2) Wet dust removal grinding table
Wet dust removal through water or other liquid media and dust
particles in contact with the dust particles, so that the dust
particles wet and settled down, so as to achieve the purpose of
dust removal. This type of dust removal has higher safety when
dealing with flammable and explosive dust.
(3) Lay-flat dust removal grinding table
Lay-flat working surface is easy to place and fix the workpiece,
improve the stability and efficiency of the grinding operation.
2. Parameter Description
Take QD-DM2000 model for example:
| Air Volume | 3000m3/h | Power | 3kw |
| Power | 380V, 50HZ(optional) | Filter Cartridge | Φ325*500mm, 3 pcs |
| External Size | 2000*1000*800mm | Cleaning Method | Pulse Valve |
| Pulse Valve | 1.0 inch, 3 pc | Noise | <85 dB |
| Purification Efficiency | 99.97% | | |
3. Maintenance Instructions
Equipment in the process of processing according to the workshop
production equipment specifications, in order to ensure production
safety and operational stability of the situation for each part and
the system for a number of experiments before being put into use.
The equipment itself has no wearing parts, no special attention in
the use of the process. Each system has been installed with safety
guarantee at the completion of the equipment. Consumables are
supplied by us and replaced by the workshop operator after
switching off the power.
Please observe the following when carrying out repairs and
maintenance:
(1) When cleaning the machine casing, replacing parts or changing
the working condition, the machine must be switched off and
unplugged from the power supply.
(2) Avoid squeezing and dragging or any other way to damage the
power cord. And regularly check whether the power cord is damaged,
if there is any damage to the power cord, you should immediately
stop using the machine and have it overhauled by a professional to
replace the damaged power cord, etc.
(3) Storage of the machine: when the machine is not in use, it
should be placed in a dry room to avoid sun and rain.
(4) The machine needs to clean the filter cartridge from time to
time to prevent clogging and affect the effect of vacuuming.
(5) According to the cleanliness of the environment, replace the
filter regularly (generally 3-6 months).
4. FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional
manufacturer of dust removal and conveying equipment with more than
20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from
Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and
produces 2,000 machines a year.
Q: What certificates do you have?
A:CE / ISO / SGS
